Chemical Analysis

A non-mechanical test to determine the mechanical properties of engineering alloys and their response to heat treatment

Chemical Analysis

This is not a mechanical test. however, the chemical composition of engineering alloys, e.g. steels and aluminium alloys, can determine their mechanical properties and their response to heat treatment.

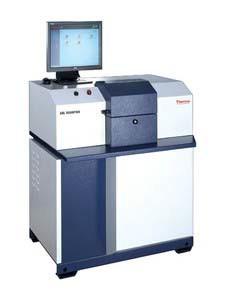

A quick and accurate determination of the chemical composition of metals can be made by optical emission spectrometer (OES). An electric arc is struck between the solid metal sample and a tungsten electrode. The light from the arc can be separated into its various wavelengths and the intensities measured. The chemical composition can thus be determined in a matter of seconds and to an accuracy of, typically, 0.01 weight percent.

Grey cast iron can pose a problem to analysis by OES, the free graphite in the matrix can deceive the spectrometer and produce gross inaccuracies. By remelting the cast iron surface with a plasma arc or similar heat source, the resultant liquid will cool quickly as white cast iron, which may be analysed successfully.

The samples must be of solid metal with a continuous surface area of at least 15 x 15mm. Samples in rod or bar form must be at least 4mm in diameter. Only Iron-based (e.g. steels, cast irons), Copper-based (e.g. brass, bronze) or Aluminium-based materials can be analysed at present.

Grey or SG Cast Iron samples can be successfully analysed. however, these samples require a surface melting treatment prior to analysis. A minimum sample size of 25 x 25 x 15mm is required.



Testing Rates

  • Chemical Analysis - €65
  • Chemical Analysis: Sectioning of sample (if required) - €35
